Hurricanes and Data Visualisation: Part II – Map Reading

This is the second of two articles whose genesis was the nexus of hurricanes and data visualisation. The first article was, Part I – Rainbow’s Gravity [1].

Introduction

In the first article in this mini-series we looked at alternative approaches to colour and how these could inform or mislead in data visualisations relating to weather events. In particular we discussed drawbacks of using a rainbow palette in such visualisations and some alternatives. Here we move into much more serious territory, how best to inform the public about what a specific hurricane will do next and the risks that it poses. It would not be an exaggeration to say that sometimes this area may be a matter of life and death. As with rainbow-coloured maps of weather events, some aspects of how the estimated future course of hurricanes are communicated and understood leave much to be desired.

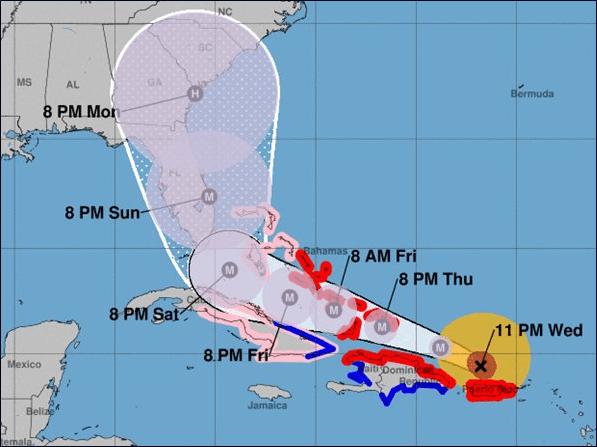

The above diagram is called a the cone of uncertainty of a hurricane. Cone of uncertainty sounds like an odd term. What does it mean? Let’s start by offering a historical perspective on hurricane modelling.

Paleomodelling

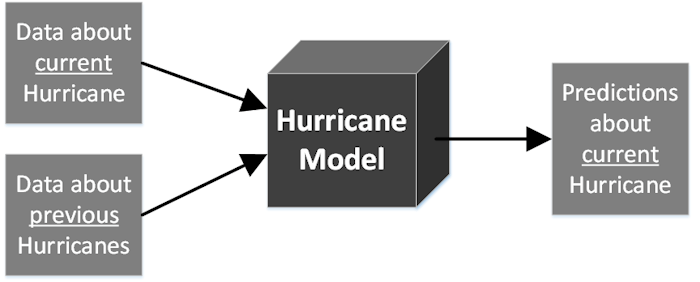

Well like any other type of weather prediction, determining the future direction and speed of a hurricane is not an exact science [2]. In the earlier days of hurricane modelling, Meteorologists used to employ statistical models, which were built based on detailed information about previous hurricanes, took as input many data points about the history of a current hurricane’s evolution and provided as output a prediction of what it could do in coming days.

There were a variety of statistical models, but the output of them was split into two types when used for hurricane prediction.

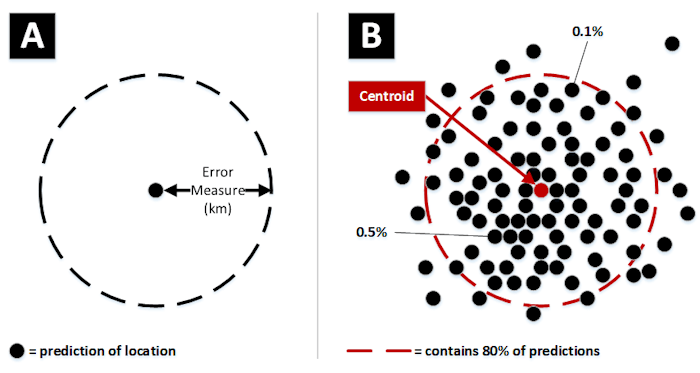

Type A

First, the model could have generated a single prediction (the centre of the hurricane will be at 32.3078° N, 64.7505° W tomorrow) and supplemented this with an error measure. The error measure would have been based on historical hurricane data and related to how far out prior predictions had been on average; this measure would have been in kilometres. It would have been typical to employ some fraction of the error measure to define a “circle of uncertainty” around the central prediction; 80% in the example directly above (compared to two thirds in the NWS exhibit at the start of the article).

Type B

Second, the model could have generated a large number of mini-predictions, each of which would have had a probability associated with it (e.g. the first two estimates of location could be that the centre of the hurricane is at 32.3078° N, 64.7505° W with a 5% chance, or a mile away at 32.3223° N, 64.7505° W with a 2% chance and so on). In general if you had picked the “centre of gravity” of the second type of output, it would have been analogous to the single prediction of the first type of output [3]. The spread of point predictions in the second method would have also been analogous to the error measure of the first. Drawing a circle around the centroid would have captured a percentage of the mini-predictions, once more 80% in the example immediately above and two thirds in the NWS chart, generating another “circle of uncertainty”.

Here comes the Science

That was then of course, nowadays the statistical element of hurricane models is less significant. With increased processing power and the ability to store and manipulate vast amounts of data, most hurricane models instead rely upon scientific models; let’s call this Type C.

Type C

As the air is a fluid [4], its behaviour falls into the area of study known as fluid dynamics. If we treat the atmosphere as being viscous, then the appropriate equation governing fluid dynamics is the Navier-Stokes equation, which is itself derived from the Cauchy Momentum equation:

$\displaystyle\frac{\partial}{\partial t}(\rho \boldsymbol{u}) + \nabla \cdot (\rho \boldsymbol{u}\otimes \boldsymbol{u})=-\nabla\cdot p\boldsymbol{I}+\nabla\cdot\boldsymbol{\tau} + \rho\boldsymbol{g}$

If viscosity is taken as zero (as a simplification), instead the Euler equations apply:

$\displaystyle\left\{\begin{array}{lr}\displaystyle\frac{\partial\boldsymbol{u}}{\partial t} + \nabla \cdot (\boldsymbol{u}\otimes \boldsymbol{u} + w\boldsymbol{I}) = \boldsymbol{g} \\ \\ \nabla \cdot \boldsymbol{u}= 0\end{array}\right.$

The reader may be glad to know that I don’t propose to talk about any of the above equations any further.

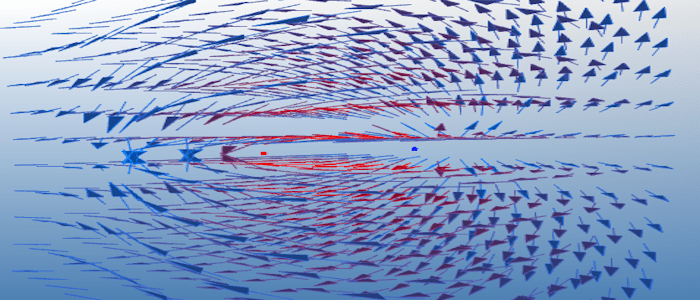

To get back to the model, in general the atmosphere will be split into a three dimensional grid (the atmosphere has height as well). The current temperature, pressure, moisture content etc. are fed in (or sometimes interpolated) at each point and equations such as the ones above are used to determine the evolution of fluid flow at a given grid element. Of course – as is typical in such situations – approximations of the equations are used and there is some flexibility over which approximations to employ. Also, there may be uncertainty about the input parameters, so statistics does not disappear entirely. Leaving this to one side, how the atmospheric conditions change over time at each grid point rolls up to provide a predictive basis for what a hurricane will do next.

Although the methods are very different, the output of these scientific models will be pretty similar, qualitatively, to the Type A statistical model above. In particular, uncertainty will be delineated based on how well the model performed on previous occasions. For example, what was the average difference between prediction and fact after 6 hours, 12 hours and so on. Again, the uncertainty will have similar characteristics to that of Type A above.

A Section about Conics

In all of the cases discussed above, we have a central prediction (which may be an average of several predictions as per Type B) and a circular distribution around this indicating uncertainty. Let’s consider how these predictions might change as we move into the future.

If today is Monday, then there will be some uncertainty about what the hurricane does on Tuesday. For Wednesday, the uncertainty will be greater than for Tuesday (the “circle of uncertainty” will have grown) and so on. With the Type A and Type C outputs, the error measure will increase with time. With the Type B output, if the model spits out 100 possible locations for the hurricane on a specific day (complete with the likelihood of each of these occurring), then these will be fairly close together on Tuesday and further apart on Wednesday. In all cases, uncertainty about the location of the becomes smeared out over time, resulting in a larger area where it is likely to be located and a bigger “circle of uncertainty”.

This is where the circles of uncertainty combine to become a cone of uncertainty. For the same example, on each day, the meteorologists will plot the central prediction for the hurricane’s location and then draw a circle centered on this which captures the uncertainty of the prediction. For the same reason as stated above, the size of the circle will (in general) increase with time; Wednesday’s circle will be bigger than Tuesday’s. Also each day’s central prediction will be in a different place from the previous day’s as the hurricane moves along. Joining up all of these circles gives us the cone of uncertainty [5].

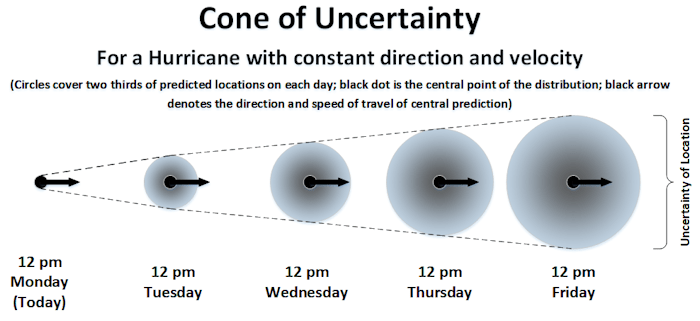

If the central predictions imply that a hurricane is moving with constant speed and direction, then its cone of uncertainty would look something like this:

In this diagram, broadly speaking, on each day, there is a 67% probability that the centre of the hurricane will be found within the relevant circle that makes up the cone of uncertainty. We will explore the implications of the underlined phrase in the next section.

Of course hurricanes don’t move in a single direction at an unvarying pace (see the actual NWS exhibit above as opposed to my idealised rendition), so part of the purpose of the cone of uncertainty diagram is to elucidate this.

The Central Issue

So hopefully the intent of the NWS chart at the beginning of this article is now clearer. What is the problem with it? Well I’ll go back to the words I highlighted couple of paragraphs back:

There is a 67% probability that the centre of the hurricane will be found within the relevant circle that makes up the cone of uncertainty

So the cone helps us with where the centre of the hurricane may be. A reasonable question is, what about the rest of the hurricane?

For ease of reference, here is the NWS exhibit again:

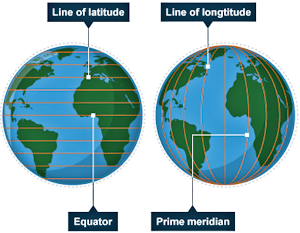

Let’s first of all pause to work out how big some of the NWS “circles of uncertainty” are. To do this we can note that the grid lines (though not labelled) are clearly at 5° intervals. The distance between two lines of latitude (ones drawn parallel to the equator) that are 1° apart from each other is a relatively consistent number; approximately 111 km [6]. This means that the lines of latitude on the page are around 555 km apart. Using this as a reference, the “circle of uncertainty” labelled “8 PM Sat” has a diameter of about 420 km (260 miles).

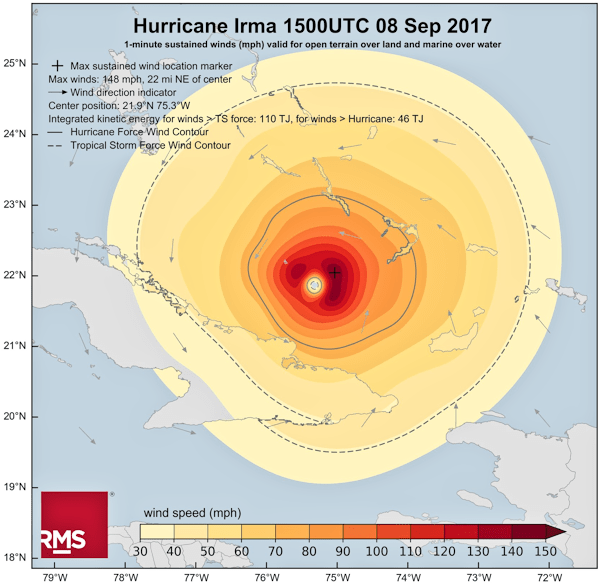

Let’s now consider how big Hurricane Irma was [7].

Aside: I’d be remiss if I didn’t point out here that RMS have selected what seems to me to be a pretty good colour palette in the chart above.

Well there is no defined sharp edge of a hurricane, rather the speed of winds tails off as may be seen in the above diagram. In order to get some sense of the size of Irma, I’ll use the dashed line in the chart that indicates where wind speeds drop below that classified as a tropical storm (65 kmph or 40 mph [8]). This area is not uniform, but measures around 580 km (360 miles) wide.

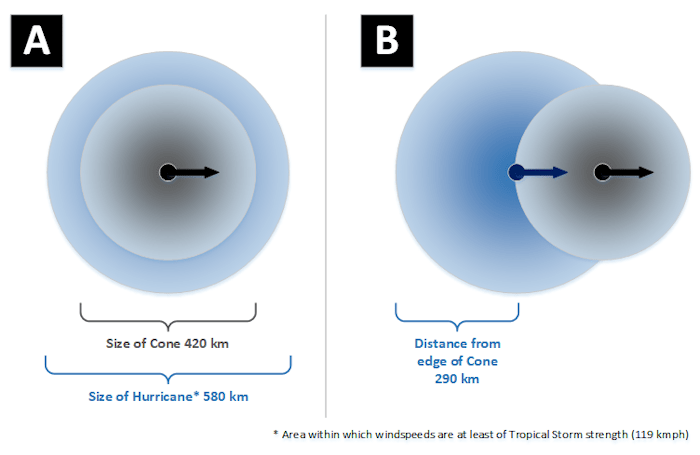

There are two issues here, which are illustrated in the above diagram.

Issue A

Irma was actually bigger [9] than at least some of the “circles of uncertainty”. A cursory glance at the NWS exhibit would probably give the sense that the cone of uncertainty represents the extent of the storm, it doesn’t. In our example, Irma extends 80 km beyond the “circle of uncertainty” we measured above. If you thought you were safe because you were 50 km from the edge of the cone, then this was probably an erroneous conclusion.

Issue B

Even more pernicious, because each “circle of uncertainty” provides an area within which the centre of the hurricane could be situated, this includes cases where the centre of the hurricane sits on the circumference of the “circle of uncertainty”. This, together with the size of the storm, means that someone 290 km from the edge of the “circle of uncertainty” could suffer 65 kmph (40 mph) winds. Again, based on the diagram, if you felt that you were guaranteed to be OK if you were 250 km away from the edge of the cone, you could get a nasty surprise.

These are not academic distinctions, the real danger that hurricane cones were misinterpreted led the NWS to start labelling their charts with “This cone DOES NOT REPRESENT THE SIZE OF THE STORM!![10].

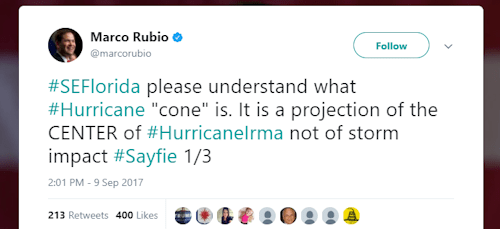

Even Florida senator Marco Rubio got in on the act, tweeting:

When you need a politician help you avoid misinterpreting a data visualisation, you know that there is something amiss.

In Summary

The last thing I want to do is to appear critical of the men and women of the US National Weather Service. I’m sure that they do a fine job. If anything, the issues we have been dissecting here demonstrate that even highly expert people with a strong motivation to communicate clearly can still find it tough to select the right visual metaphor for a data visualisation; particularly when there is a diverse audience consuming the results. It also doesn’t help that there are many degrees of uncertainty here: where might the centre of the storm be? how big might the storm be? how powerful might the storm be? in which direction might the storm move? Layering all of these onto a single exhibit while still rendering it both legible and of some utility to the general public is not a trivial exercise.

The cone of uncertainty is a precise chart, so long as the reader understands what it is showing and what it is not. Perhaps the issue lies more in the eye of the beholder. However, having to annotate your charts to explain what they are not is never a good look on anyone. The NWS are clearly aware of the issues, I look forward to viewing whatever creative solution they come up with later this hurricane season.

Acknowledgements

I would like to thank Dr Steve Smith, Head of Catastrophic Risk at Fractal Industries, for reviewing this piece and putting me right on some elements of modern hurricane prediction. I would also like to thank my friend and former colleague, Dr Raveem Ismail, also of Fractal Industries, for introducing me to Steve. Despite the input of these two experts, responsibility for any errors or omissions remains mine alone.

Notes

 [1] I also squeezed Part I(b) – The Mona Lisa in between the two articles I originally planned. [2] I don’t mean to imply by this that the estimation process is unscientific of course. Indeed, as we will see later, hurricane prediction is becoming more scientific all the time. [3] If both methods were employed in parallel, it would not be too surprising if their central predictions were close to each other. [4] A gas or a liquid. [5] A shape traced out by a particle traveling with constant speed and with a circle of increasing radius inscribed around it would be a cone. [6] The distance between lines of longitude varies between 111 km at the equator and 0 km at either pole. This is because lines of longitude are great circles (or meridians) that meet at the poles. Lines of latitude are parallel circles (parallels) progressing up and down the globe from the equator. [7] At a point in time of course. Hurricanes change in size over time as well as in their direction/speed of travel and energy. [8] I am rounding here. The actual threshold values are 63 kmph and 39 mph. [9] Using the definition of size that we have adopted above. [10] Their use of capitals, bold and multiple exclamation marks.

From: peterjamesthomas.com, home of The Data and Analytics Dictionary

The revised and expanded Data and Analytics Dictionary

Since its launch in August of this year, the peterjamesthomas.com Data and Analytics Dictionary has received a welcome amount of attention with various people on different social media platforms praising its usefulness, particularly as an introduction to the area. A number of people have made helpful suggestions for new entries or improvements to existing ones. I have also been rounding out the content with some more terms relating to each of Data Governance, Big Data and Data Warehousing. As a result, The Dictionary now has over 80 main entries (not including ones that simply refer the reader to another entry, such as Linear Regression, which redirects to Model).

The most recently added entries are as follows:

It is my intention to continue to revise this resource. Adding some more detail about Machine Learning and related areas is probably the next focus.

As ever, ideas for what to include next would be more than welcome (any suggestions used will also be acknowledged).

From: peterjamesthomas.com, home of The Data and Analytics Dictionary

Hurricanes and Data Visualisation: Part I(b) – The Mona Lisa

The first half of my planned thoughts on Hurricanes and Data Visualisation is called Rainbow’s Gravity and was published earlier this week. Part two, Map Reading, has now also been published. Here is an unplanned post slotting into the gap between the two.

The image above is iconic enough to require no introduction. In response to my article about the use of a rainbow palette Quora user Hyunjun Ji decided to illustrate the point using this famous painting. Here is the Mona Lisa rendered using a rainbow colour map:

Here is the same image using the viridis colormap [1]:

The difference in detail conveyed between these two images is vast. I’ll let Hyunjun explain in his own words [2]:

In these images, the rainbow color map might look colorful, but for example, if you take a look at the neck and forehead, you observe a very rapid red to green color change.

Another thing about the rainbow colormap is that it is not uniform, especially in terms of brightness. When you go from small to large data, its brightness does not monotonically increase or decrease. Instead, it goes up and down, confusing human perception.

To emphasise his point, Hyunjun then converted the rainbow Mona Lisa back to greyscale, this final image really brings home how much information is lost by adopting a rainbow palette.

Hyunjun’s points were striking enough for me to want to share them with a wider audience and I thank him for providing this pithy insight.

Notes

 [1] viridis is an add-in package for the R statistical language, based on a colourmap originally developed for Python, see https://cran.r-project.org/web/packages/viridis/vignettes/intro-to-viridis.html. According to its creators, viridis is designed to be: Colorful, spanning as wide a palette as possible so as to make differences easy to see, Perceptually uniform, meaning that values close to each other have similar-appearing colors and values far away from each other have more different-appearing colors, consistently across the range of values, Robust to colorblindness, so that the above properties hold true for people with common forms of colorblindness, as well as in grey scale printing, and Pretty, oh so pretty [2] Also noting that the Mona Lisa idea comes from a presentation from the creators of viridis, Stéfan van der Walt and Nathaniel Smith.

From: peterjamesthomas.com, home of The Data and Analytics Dictionary

Hurricanes and Data Visualisation: Part I – Rainbow’s Gravity

This is the first of two articles whose genesis was the nexus of hurricanes and data visualisation. The second article, Part II – Map Reading, has now been published.

Introduction

This first article is not a critique of Thomas Pynchon‘s celebrated work, instead it refers to a grave malady that can afflict otherwise health data visualisations; the use and abuse of rainbow colours. This is an area that some data visualisation professionals can get somewhat hot under the collar about; there is even a Twitter hashtag devoted to opposing this colour choice, #endtherainbow.

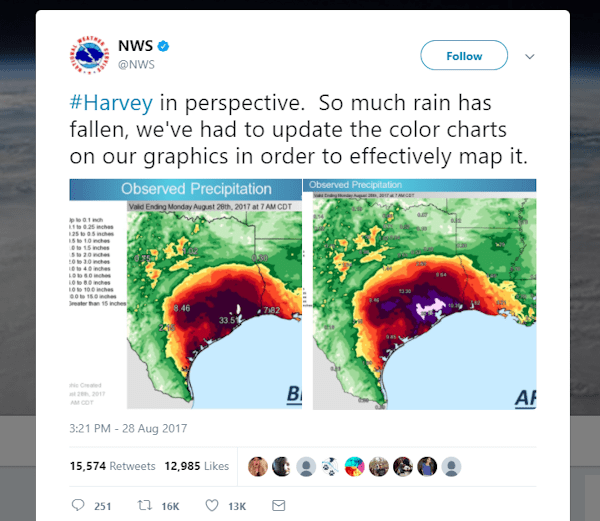

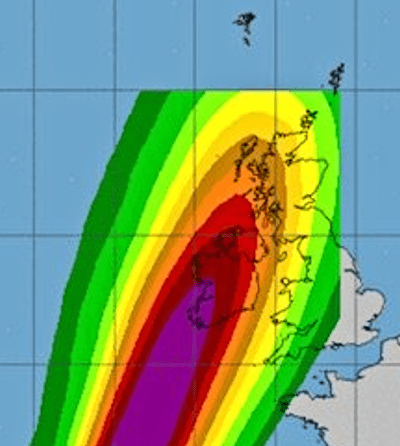

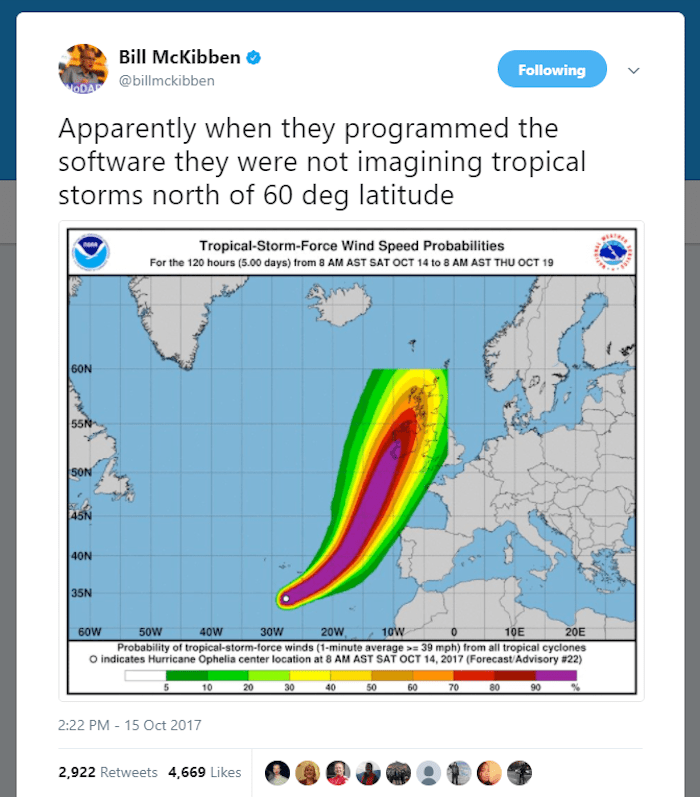

The [mal-] practice has come under additional scrutiny in recent weeks due to the major meteorological events causing so much damage and even loss of life in the Caribbean and southern US; hurricanes Harvey and Irma. Of course the most salient point about these two megastorms is their destructive capability. However the observations that data visualisers make about how information about hurricanes is conveyed do carry some weight in two areas; how the public perceives these phenomena and how they perceive scientific findings in general [1]. The issues at stake are ones of both clarity and inclusiveness. Some of these people felt that salt was rubbed in the wound when the US National Weather Service, avid users of rainbows [2], had to add another colour to their normal palette for Harvey:

In 2015, five scientists collectively wrote a letter to Nature entitled “Scrap rainbow colour scales” [3]. In this they state:

It is time to clamp down on the use of misleading rainbow colour scales that are increasingly pervading the literature and the media. Accurate graphics are key to clear communication of scientific results to other researchers and the public — an issue that is becoming ever more important.

At this point I have to admit to using rainbow colour schemes myself professionally and personally [4]; it is often the path of least resistance. I do however think that the #endtherainbow advocates have a point, one that I will try to illustrate below.

Many Marvellous Maps

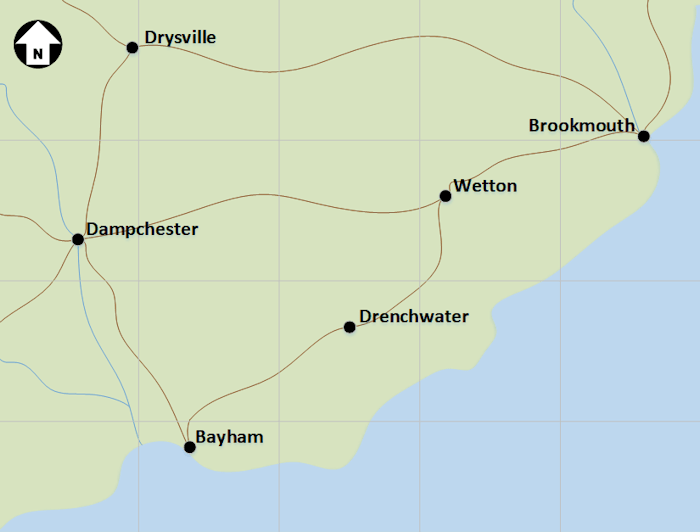

Let’s start by introducing the idyllic coastal county of Thomasshire, a map of which appears below:

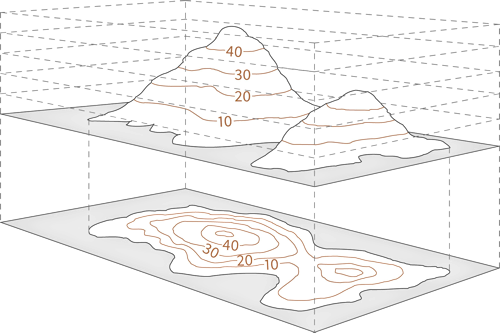

Of course this is a cartoon map, it might be more typical to start with an actual map from Google Maps or some other provider [5], but this doesn’t matter to the argument we will construct here. Let’s suppose that – rather than anything as potentially catastrophic as a hurricane – the challenge is simply to record the rainfall due to a nasty storm that passed through this shire [6]. Based on readings from various weather stations (augmented perhaps by information drawn from radar), rainfall data would be captured and used to build up a rain contour map, much like the elevation contour maps that many people will recall from Geography lessons at school [7].

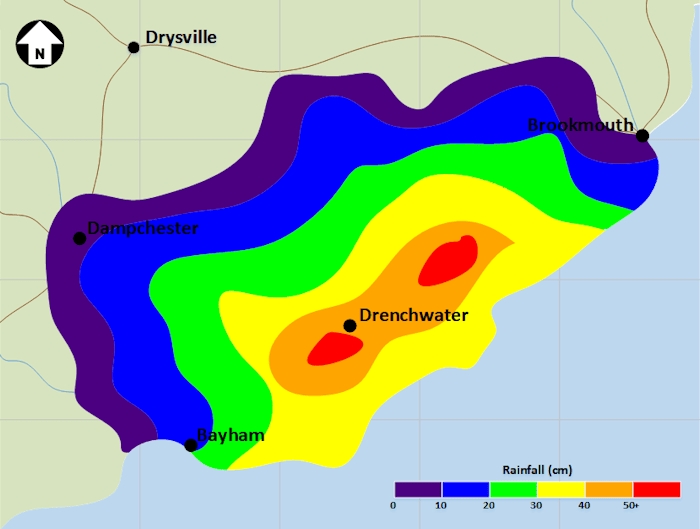

If we were to adopt a rainbow colour scheme, then such a map might look something like the one shown below:

Here all areas coloured purple will have received between 0 and 10 cm of rain, blue between 10 and 20 cm of rain and so on.

At this point I apologise to any readers who suffer from migraine. An obvious drawback of this approach is how garish it is. Also the solid colours block out details of the underlying map. Well something can be done about both of these issues by making the contour colours transparent. This both tones them down and allows map details to remain at least semi-visible. This gets us a new map:

Here we get into the core of the argument about the suitability of a rainbow palette. Again quoting from the Nature letter:

[…] spectral-type colour palettes can introduce false perceptual thresholds in the data (or hide genuine ones); they may also mask fine detail in the data. These palettes have no unique perceptual ordering, so they can de-emphasize data extremes by placing the most prominent colour near the middle of the scale.

[…]

Journals should not tolerate poor visual communication, particularly because better alternatives to rainbow scales are readily available (see NASA Earth Observatory).

In our map, what we are looking to do is to show increasing severity of the deluge as we pass from purple (indigo / violet) up to red. But the ROYGBIV [8] colours of the spectrum are ill-suited to this. Our eyes react differently to different colours and will not immediately infer the gradient in rainfall that the image is aiming to convey. The NASA article the authors cite above uses a picture to paint a thousand words:

Another salient point is that a relatively high proportion of people suffer from one or other of the various forms of colour blindness [9]. Even the most tastefully pastel rainbow chart will disadvantage such people seeking to derive meaning from it.

Getting Over the Rainbow

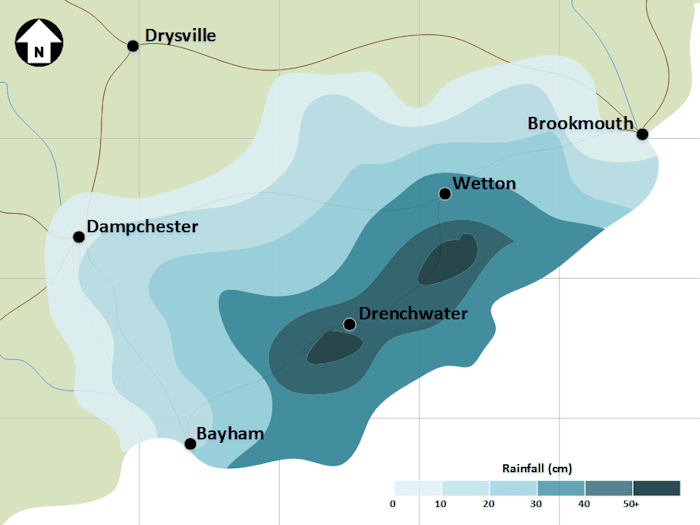

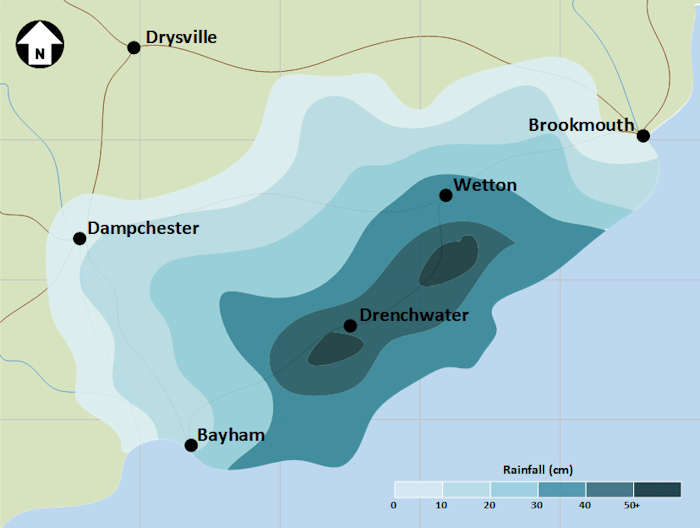

So what could be another approach? Well one idea is to show gradients of whatever the diagram is tracking using gradients of colour; this is the essence of the NASA recommendation. I have attempted to do just this in the next map.

I chose a bluey-green tone both as it was to hand in the Visio palette I was using and also to avoid confusion with the blue sea (more on this later). Rather than different colours, the idea is to map intensity of rainfall to intensity of colour. This should address both colour-blindness issues and the problems mentioned above with discriminating between ROYGBIV colours. I hope that readers will agree that it is easier to grasp what is happening at a glance when looking at this chart than in the ones that preceded it.

However, from a design point of view, there is still one issue here; the sea. There are too many bluey colours here for my taste, so let’s remove the sea colouration to get:

Some purists might suggest also turning the land white (or maybe a shade of grey), others would mention that the grid-lines add little value (especially as they are not numbered). Both would probably have a point, however I think that use can also push minimalism too far. I am pretty happy that our final map delivers the information it is intended to convey much more accurately and more immediately than any of its predecessors.

Comparing the first two rainbow maps to this last one, it is perhaps easy to see why so many people engaged in the design of data visualisations want to see an end to ROYGBIV palettes. In the saying, there is a pot of gold at the end of the rainbow, but of course this can never be reached. I strongly suspect that, despite the efforts of the #endtherainbow crowd, an end to the usage of this particular palette will be equally out of reach. However I hope that this article is something that readers will bear in mind when next deciding on how best to colour their business graph, diagram or data visualisation. I am certainly going to try to modify my approach as well.

The story of hurricanes and data visualisation will continue in Part II – Map Reading.

Notes

 [1] For some more thoughts on the public perception of science, see Toast. [2] I guess it’s appropriate from at least one point of view. [3] Scrap rainbow colour scales. Nature (519, 219, 2015) Ed Hawkins – National Centre for Atmospheric Science, University of Reading, UK (@ed_hawkins) Doug McNeall – Met Office Hadley Centre, Exeter, UK (@dougmcneall) Jonny Williams – University of Bristol, UK (LinkedIn page) David B. Stephenson – University of Exeter, UK (Academic page) David Carlson – World Meteorological Organization, Geneva, Switzerland (retired June 2017). [4] I did also go through a brief monochromatic phase, but it didn’t last long. [5] I guess it might take some time to find Thomasshire on Google Maps. [6] Based on the data I am graphing here, it was a very nasty storm indeed! In this article, I am not looking for realism, just to make some points about the design of diagrams. [7] Click to view a larger version. Sourced from UK Ordnance Survey Whereas contours on a physical geography map (see above) link areas with the same elevation above sea level, rainfall contour lines would link areas with the same precipitation. [8] Red, Orange, Yellow, Green, Blue, Indigo, Violet. [9] Red–green color blindness, the most common sort, affects 80 in 1,000 of males and 4 in 1,000 of females of Northern European descent.

From: peterjamesthomas.com, home of The Data and Analytics Dictionary

The peterjamesthomas.com Data and Analytics Dictionary

I find myself frequently being asked questions around terminology in Data and Analytics and so thought that I would try to define some of the more commonly used phrases and words. My first attempt to do this can be viewed in a new page added to this site (this also appears in the site menu):

The Data and Analytics Dictionary

I plan to keep this up-to-date as the field continues to evolve.

I hope that my efforts to explain some concepts in my main area of specialism are both of interest and utility to readers. Any suggestions for new entries or comments on existing ones are more than welcome.

Nucleosynthesis and Data Visualisation

The Periodic Table, is one of the truly iconic scientific images [1], albeit one with a variety of forms. In the picture above, the normal Periodic Table has been repurposed in a novel manner to illuminate a different field of scientific enquiry. This version was created by Professor Jennifer Johnson (@jajohnson51) of The Ohio State University and the Sloan Digital Sky Survey (SDSS). It comes from an article on the SDSS blog entitled Origin of the Elements in the Solar System; I’d recommend reading the original post.

The historical perspective

A modern rendering of the Periodic Table appears above. It probably is superfluous to mention, but the Periodic Table is a visualisation of an underlying principle about elements; that they fall into families with similar properties and that – if appropriately arranged – patterns emerge with family members appearing at regular intervals. Thus the Alkali Metals [2], all of which share many important characteristics, form a column on the left-hand extremity of the above Table; the Noble Gases [3] form a column on the far right; and, in between, other families form further columns.

Given that the underlying principle driving the organisation of the Periodic Table is essentially a numeric one, we can readily see that it is not just a visualisation, but a data visualisation. This means that Professor Johnson and her colleagues are using an existing data visualisation to convey new information, a valuable technique to have in your arsenal.

One of the original forms of the Periodic Table appears above, alongside its inventor, Dmitri Mendeleev.

As with most things in science [4], my beguilingly straightforward formulation of “its inventor” is rather less clear-cut in practice. Mendeleev’s work – like Newton’s before him – rested “on the shoulders of giants” [5]. However, as with many areas of scientific endeavour, the chain of contributions winds its way back a long way and specifically to one of the greatest exponents of the scientific method [6], Antoine Lavoisier. The later Law of Triads [7], was another significant step along the path and – to mix a metaphor – many other scientists provided pieces of the jigsaw puzzle that Mendeleev finally assembled. Indeed around the same time as Mendeleev published his ideas [8], so did the much less celebrated Julius Meyer; Meyer and Mendeleev’s work shared several characteristics.

The epithet of inventor attached to Mendeleev for two main reasons: his leaving of gaps in his table, pointing the way to as yet undiscovered elements; and his ordering of table entries according to family behaviour rather than atomic mass [9]. None of this is to take away from Mendeleev’s seminal work, it is wholly appropriate that his name will always be linked with his most famous insight. Instead it is my intention is to demonstrate that the the course of true science never did run smooth [10].

The Johnson perspective

Since its creation – and during its many reformulations – the Periodic Table has acted as a pointer for many areas of scientific enquiry. Why do elements fall into families in this way? How many elements are there? Is it possible to achieve the Alchemists’ dream and transmute one element into another? However, the question which Professor Johnson’s diagram addresses is another one, Why is there such an abundance of elements and where did they all come from?

The term nucleosynthesis that appears in the title of this article covers processes by which different atoms are formed from either base nucleons (protons and neutrons) or the combination of smaller atoms. It is nucleosynthesis which attempts to answer the question we are now considering. There are different types.

Our current perspective on where everything in the observable Universe came from is of course the Big Bang [11]. This rather tidily accounts for the abundance of element 1, Hydrogen, and much of that of element 2, Helium. This is our first type of nucleosynthesis, Big Bang nucleosynthesis. However, it does not explain where all of the heavier elements came from [12]. The first part of the answer is from processes of nuclear fusion in stars. The most prevalent form of this is the fusion of Hydrogen to form Helium (accounting for the remaining Helium atoms), but this process continues creating heavier elements, albeit in ever decreasing quantities. This is stellar nucleosynthesis and refers to those elements created in stars during their normal lives.

While readers may be ready to accept the creation of these heavier elements in stars, an obvious question is How come they aren’t in stars any longer? The answer lies in what happens at the end of the life of a star. This is something that depends on a number of factors, but particularly its mass and also whether or not it is associated with another star, e.g. in a binary system.

Broadly speaking, higher mass stars tend to go out with a bang [13], lower mass ones with various kinds of whimpers. The exception to the latter is where the low mass star is coupled to another star, arrangements which can also lead to a considerable explosion as well [14]. Of whatever type, violent or passive, star deaths create all of the rest of the heavier elements. Supernovae are also responsible for releasing many heavy elements in to interstellar space, and this process is tagged explosive nucleosynthesis.

Into this relatively tidy model of nucleosynthesis intrudes the phenomenon of cosmic ray fission, by which cosmic rays [15] impact on heavier elements causing them to split into smaller constituents. We believe that this process is behind most of the Beryllium and Boron in the Universe as well as some of the Lithium. There are obviously other mechanisms at work like radioactive decay, but the vast majority of elements are created either in stars or during the death of stars.

I have elided many of the details of nucleosynthesis here, it is a complicated and evolving field. What Professor Johnson’s graphic achieves is to reflect current academic thinking around which elements are produced by which type of process. The diagram certainly highlights the fact that the genesis of the elements is a complex story. Perhaps less prosaically, it also encapulates Carl Sagan‘s famous aphorism, the one that Professor Johnson quotes at the beginning of her article and which I will use to close mine.

We are made of starstuff.

Notes

 [1] See Data Visualisation – A Scientific Treatment for a perspective on another member of this select group. [2] Lithium, Sodium, Potassium, Rubidium, Caesium and Francium (Hydrogen sometimes is shown as topping this list as well). [3] Helium, Argon, Neon, Krypton, Xenon and Radon. [4] Watch this space for an article pertinent to this very subject. [5] Isaac Newton on 15th February 1676. in a letter to Robert Hooke; but employing a turn of phrase which had been in use for many years. [6] And certainly the greatest scientist ever to be beheaded. [7] Döbereiner, J. W. (1829) “An Attempt to Group Elementary Substances according to Their Analogies”. Annalen der Physik und Chemie. [8] In truth somewhat earlier. [9] The emergence of atomic number as the organising principle behind the ordering of elements happened somewhat later, vindicating Mendeleev’s approach. We have: atomic mass ≅ number of protons in the nucleus of an element + number of neutrons whereas: atomic number = number of protons only The number of neutrons can jump about between successive elements meaning that arranging them in order of atomic mass gives a different result from atomic number. [10] With apologies to The Bard. [11] I really can’t conceive that anyone who has read this far needs the Big Bang further expounded to them, but if so, then GIYF. [12] We think that the Big Bang also created some quantities of Lithium and several other heavier elements, as covered in Professor Johnson’s diagram. [13] Generally some type of Core Collapse supernova. [14] Type-Ia supernovae are a phenomenon that allow us to accurately measure the size of the universe and how this is changing. [15] Cosmic rays are very high energy particles that originate from outside of the Solar System and consist mostly of very fast moving protons (aka Hydrogen nuclei) and other atomic nuclei similarly stripped of their electrons.

Metamorphosis

No neither my observations on the work of Kafka, nor that of Escher [1]. Instead some musings relating on how to transform a bare bones and unengaging chart into something that both captures the attention of the reader and better informs them of the message that the data displayed is relaying. Let’s consider an example:

Before:

After:

The two images above are both renderings of the same dataset, which tracks the degree of fragmentation of the Israeli parliament – the Knesset – over time [2]. They are clearly rather different and – I would argue – the latter makes it a lot easier to absorb information and thus to draw inferences.

Both are the work of Boris Gorelik a data scientist at Automattic, a company that is most well-known for creating freemium SAAS blogging platform, WordPress.com and open source blogging software, WordPress [3].

I have been a contented WordPress.com user since the inception of this blog back in November 2008, so it was with interest that I learnt that Automattic have their own data-focussed blog, Data for Breakfast, unsurprisingly hosted on WordPress.com. It was on Data for Breakfast that I found Boris’s article, Evolution of a Plot: Better Data Visualization, One Step at a Time. In this he takes the reader step by step through what he did to transform his data visualisation from the ugly duckling “before” exhibit to the beautiful swan “after” exhibit.

Boris is using Python and various related libraries to do his data visualisation work. Given that I stopped commercially programming sometime around 2009 (admittedly with a few lapses since), I typically use the much more quotidian Excel for most of the charts that appear on peterjamesthomas.com [4]. Sometimes, where warranted, I enhance these using Visio and / or PaintShop Pro.

For example, the three [5] visualisations featured in A Tale of Two [Brexit] Data Visualisations were produced this way. Despite the use of Calibri, which is probably something of a giveaway, I hope that none of these resembles a straight-out-of-the-box Excel graph [6].

While, in the above, I have not gone to the lengths that Boris has in transforming his initial and raw chart into something much more readable, I do my best to make my Excel charts look at least semi-professional. My reasoning is that, when the author of a chart has clearly put some effort into what their chart looks like and has at least attempted to consider how it will be read by people, then this is a strong signal that the subject matter merits some closer consideration.

Next time I develop a chart for posting on these pages, I may take Boris’s lead and also publish how I went about creating it.

Notes

 [1] Though the latter’s work has adorned these pages on several occasions and indeed appears in my seminar decks. [2] Boris has charted a metric derived from how many parties there have been and how many representatives of each. See his article itself for further background. [3] You can learn more about the latter at WordPress.org. [4] Though I have also used GraphPad Prism for producing more scientific charts such as the main one featured in Data Visualisation – A Scientific Treatment. [5] Yes I can count. I have certificates which prove this. [6] Indeed the final one was designed to resemble a fractured British flag. I’ll leave readers to draw their own conclusions here.

How Age was a Critical Factor in Brexit

In my last article, I looked at a couple of ways to visualise the outcome of the recent UK Referendum on Europen Union membership. There I was looking at how different visual representations highlight different attributes of data.

I’ve had a lot of positive feedback about my previous Brexit exhibits and I thought that I’d capture the zeitgeist by offering a further visual perspective, perhaps one more youthful than the venerable pie chart; namely an infographic. My attempt to produce one of these appears above and a full-size PDF version is also just a click away.

For caveats on the provenance of the data, please also see the previous article’s notes section.

 Addendum I have leveraged age group distributions from the Ascroft Polling organisation to create this exhibits. Other sites – notably the BBC – have done the same and my figures reconcile to the interpretations in other places. However, based on further analysis, I have some reason to think that either there are issues with the Ashcroft data, or that I have leveraged it in ways that the people who compiled it did not intend. Either way, the Ashcroft numbers lead to the conclusion that close to 100% of 55-64 year olds voted in the UK Referendum, which seems very, very unlikely. I have contacted the Ashcroft Polling organisation about this and will post any reply that I receive. – Peter James Thomas, 14th July 2016

A Tale of Two [Brexit] Data Visualisations

I’m continuing with the politics and data visualisation theme established in my last post. However, I’ll state up front that this is not a political article. I have assiduously stayed silent [on this blog at least] on the topic of my country’s future direction, both in the lead up to the 23rd June poll and in its aftermath. Instead, I’m going to restrict myself to making a point about data visualisation; both how it can inform and how it can mislead.

The exhibit above is my version of one that has appeared in various publications post referendum, both on-line and print. As is referenced, its two primary sources are the UK Electoral Commission and Lord Ashcroft’s polling organisation. The reason why there are two sources rather than one is explained in the notes section below.

With the caveats explained below, the above chart shows the generational divide apparent in the UK Referendum results. Those under 35 years old voted heavily for the UK to remain in the EU; those with ages between 35 and 44 voted to stay in pretty much exactly the proportion that the country as a whole voted to leave; and those over 45 years old voted increasingly heavily to leave as their years advanced.

One thing which is helpful about this exhibit is that it shows in what proportion each cohort voted. This means that the type of inferences I made in the previous paragraph leap off the page. It is pretty clear (visually) that there is a massive difference between how those aged 18-24 and those aged 65+ thought about the question in front of them in the polling booth. However, while the percentage based approach illuminates some things, it masks others. A cursory examination of the chart above might lead one to ask – based on the area covered by red rectangles – how it was that the Leave camp prevailed? To pursue an answer to this question, let’s consider the data with a slightly tweaked version of the same visualisation as below:

[Aside: The eagle-eyed amongst you may notice a discrepancy between the figures shown on the total bars above and the actual votes cast, which were respectively: Remain: 16,141k and Leave: 17,411k. Again see the notes section for an explanation of this.]

A shift from percentages to actual votes recorded casts some light on the overall picture. It now becomes clear that, while a large majority of 18-24 year olds voted to Remain, not many people in this category actually voted. Indeed while, according to the 2011 UK Census, the 18-24 year category makes up just under 12% of all people over 18 years old (not all of whom would necessarily be either eligible or registered to vote) the Ashcroft figures suggest that well under half of this group cast their ballot, compared to much higher turnouts for older voters (once more see the notes section for caveats).

This observation rather blunts the assertion that the old voted in ways that potentially disadvantaged the young; the young had every opportunity to make their voice heard more clearly, but didn’t take it. Reasons for this youthful disengagement from the political process are of course beyond the scope of this article.

However it is still hard (at least for the author’s eyes) to get the full picture from the second chart. In order to get a more visceral feeling for the dynamics of the vote, I have turned to the much maligned pie chart. I also chose to use the even less loved “exploded” version of this.

Here the weight of both the 65+ and 55+ Leave vote stands out as does the paucity of the overall 18-24 contribution; the only two pie slices too small to accommodate an internal data label. This exhibit immediately shows where the referendum was won and lost in a way that is not as easy to glean from a bar chart.

While I selected an exploded pie chart primarily for reasons of clarity, perhaps the fact that the resulting final exhibit brings to mind a shattered and reassembled Union Flag was also an artistic choice. Unfortunately, it seems that this resemblance has a high likelihood of proving all too prophetic in the coming months and years.

 Addendum I have leveraged age group distributions from the Ascroft Polling organisation to create these exhibits. Other sites – notably the BBC – have done the same and my figures reconcile to the interpretations in other places. However, based on further analysis, I have some reason to think that either there are issues with the Ashcroft data, or that I have leveraged it in ways that the people who compiled it did not intend. Either way, the Ashcroft numbers lead to the conclusion that close to 100% of 55-64 year olds voted in the UK Referendum, which seems very, very unlikely. I have contacted the Ashcroft Polling organisation about this and will post any reply that I receive. – Peter James Thomas, 14th July 2016

Notes

Caveat: I am neither a professional political pollster, nor a statistician. Instead I’m a Pure Mathematician, with a basic understanding of some elements of both these areas. For this reason, the following commentary may not be 100% rigorous; however my hope is that it is nevertheless informative.

In the wake of the UK Referendum on EU membership, a lot of attempts were made to explain the result. Several of these used splits of the vote by demographic attributes to buttress the arguments that they were making. All of the exhibits in this article use age bands, one type of demographic indicator. Analyses posted elsewhere looked at things like the influence of the UK’s social grade classifications (A, B, C1 etc.) on voting patterns, the number of immigrants in a given part of the country, the relative prosperity of different areas and how this has changed over time. Other typical demographic dimensions might include gender, educational achievement or ethnicity.

However, no demographic information was captured as part of the UK referendum process. There is no central system which takes a unique voting ID and allocates attributes to it, allowing demographic dicing and slicing (to be sure a partial and optional version of this is carried out when people leave polling stations after a General Election, but this was not done during the recent referendum).

So, how do so many demographic analyses suddenly appear? To offer some sort of answer here, I’ll take you through how I built the data set behind the exhibits in this article. At the beginning I mentioned that I relied on two data sources, the actual election results published by the UK Electoral Commission and the results of polling carried out by Lord Ashcroft’s organisation. The latter covered interviews with 12,369 people selected to match what was anticipated to be the demographic characteristics of the actual people voting. As with most statistical work, properly selecting a sample with no inherent biases (e.g. one with the same proportion of people who are 65 years or older as in the wider electorate) is generally the key to accuracy of outcome.

Importantly demographic information is known about the sample (which may also be reweighted based on interview feedback) and it is by assuming that what holds true for the sample also holds true for the electorate that my charts are created. So if X% of 18-24 year olds in the sample voted Remain, the assumption is that X% of the total number of 18-24 year olds that voted will have done the same.

12,000 plus is a good sample size for this type of exercise and I have no reason to believe that Lord Ashcroft’s people were anything other than professional in selecting the sample members and adjusting their models accordingly. However this is not the same as having definitive information about everyone who voted. So every exhibit you see relating to the age of referendum voters, or their gender, or social classification is based on estimates. This is a fact that seldom seems to be emphasised by news organisations.

The size of Lord Ashchoft’s sample also explains why the total figures for Leave and Remain on my second exhibit are different to the voting numbers. This is because 5,949 / 12,369 = 48.096% (looking at the sample figures for Remain) whereas 16,141,241 / 33,551,983 = 48.108% (looking at the actual voting figures for Remain). Both figures round to 48.1%, but the small difference in the decimal expansions, when applied to 33 million people, yields a slightly different result.

Showing uncertainty in a Data Visualisation

My attention was drawn to the above exhibit by a colleague. It is from the FiveThirtyEight web-site and one of several exhibits included in an analysis of the standing of the two US Presidential hopefuls.

In my earlier piece, Data Visualisation – A Scientific Treatment, I argued for more transparency in showing the inherent variability associated with the numbers spat out by statistical models. My specific call back then was for the use of error bars.

The FiveThirtyEight exhibit deals with this same challenge in a manner which I find elegant, clean and eminently digestible. It contains many different elements of information, but remains an exhibit whose meaning is easy to absorb. It’s an approach I will probably look to leverage myself next time I have a similar need.
